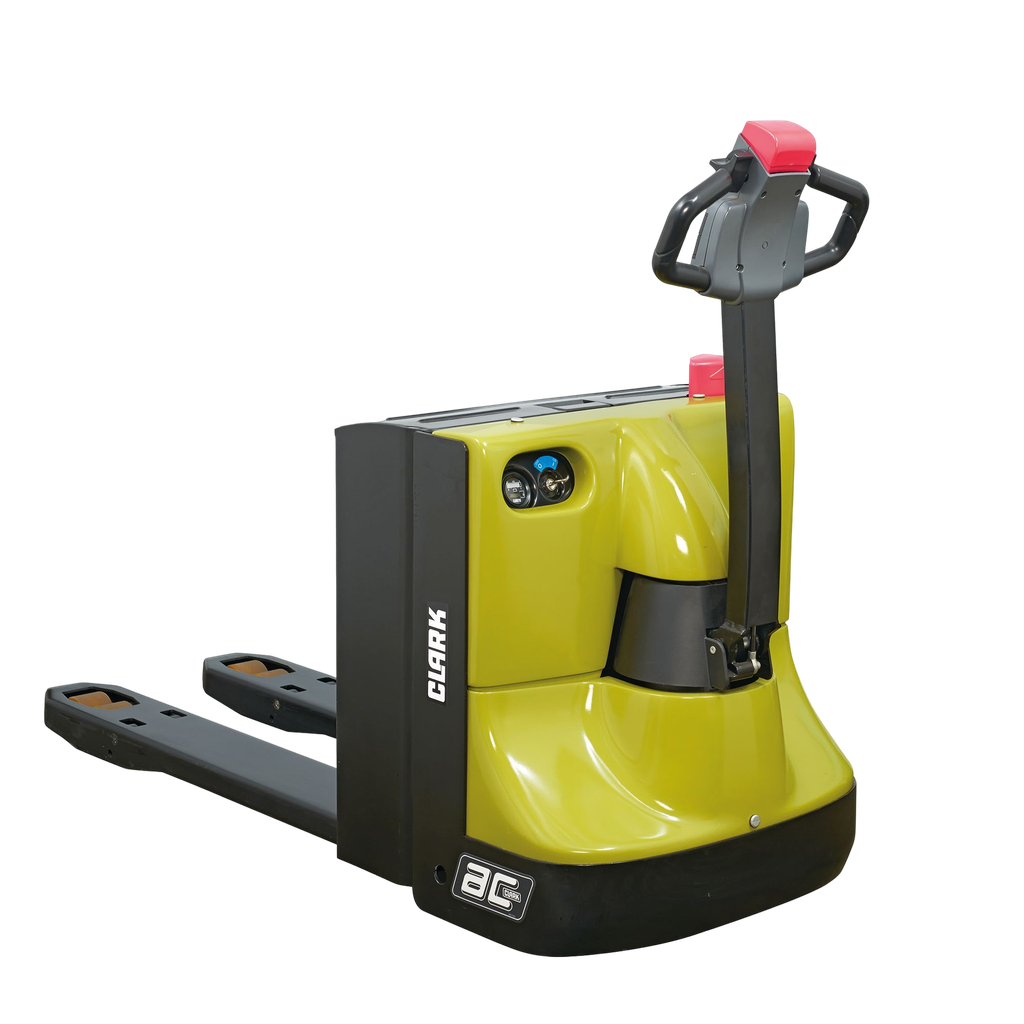

CLARK WPX15 3500 lbs Electric pallet truck
Thanks to AC technology, powerful acceleration and the CLARK Speed-System
dControl (CSC), the WPX18 is perfect for handling goods.
Training wheels with suspension for more stability. Its power is
more than enough for slopes of up to 6%, which provides
increased flexibility.
The WPX18 is equipped with maintenance-free battery packs and an integrated charger.
The one-piece front cover allows easy access during work.
maintenance.
| Brand: CLARK |
| Model: WP15 |
| Wheelbase: 1,27 m | 4,16' |
| Overall length: 12,07 m | 39,59' |
| Type of energy: Electric |
| Traction: 24V Électrique |
| Turning radius - inside: 1465 |
| Type of driving: Walk |
| Residual capacity / Loaded : 1,50 t | 3306 lb |
| Center of gravity c : 0,60 m | 1,97' |
| Position of load wheels x: 0,94 m | 3,10' |
| Loaded weight including battery (see 6.5) kg: 0,20 t | 451 lb |
| Axle load Front / Rear kg: 0,55 t /1,16 t | 1212,54 lb / 2546,34 lb |
| Axle load unladen Front / Rear kg: 180/25 |
| wheels: Ø 230x75 |
| Stabilizer Wheels (dimensions): Ø 85x48 |
| Wheels, quantity Front / Rear (x = drive wheel): 1x +2/2 or 4 |
| Front tread b10 (mm): 0,43 m | 1,43' |
| Rear tread b11 (mm): 0,49 m | 1,62' |
| Lift *1 h3 (mm): 0,12 m | 0,38' |
| Lifting height h3 + h13 (mm): 0,20 m | 0,66' |
| Drawbar height in driving position min./max h14 (mm): 0,71 m / 1,20 m | 2,35' / 3,94' |
| Fork dimensions s • e • l (mm): 0,05 x 0,15 x 1,15 m | 0,16 x 0,49 x 3,77' |
| Outer spacing of forks b5 (mm): 0,54 m | 1,77' |
| Ground clearance, center of wheelbase m2 (mm): 0,04 m | 0,11' |
| Travel Speed, Laden / Unladen km/h: 5,5/6,0 km/h |
| Hoisting speed, loaded / empty m/s: 0,05/0,06 m/s |
| Descent speed, loaded / empty m/s: 0,03/0,04 m/s |
| Service brake: Électrique |
| Traction motor power S2 60 min kW: 1,1 |
| Hoisting motor power at S3 15% kW: 0,84 |
| Nominal voltage / Battery capacity Ah/5hr: 2x12/98 Ah/5hr |
| Battery Type: Batterie Gel |
| Steering system: Mécanique |
